Vial Filling and Capping Machine for Chemical Acid Liquid Solution 5-20ml Filling and Capping with Isolator, GMP Compliant

Name: Vial Filling and Capping Machine for Chemical Acid Liquid Solution 520ml Filling and Capping with Isolator GMP Compliant
Brand: Lingyao
Price: 200 USD

Vial Filling and Capping Machine for Chemical Acid Liquid Solution 5-20ml Filling and Capping with Isolator, GMP Compliant Manufactures

Brand Name : Lingyao

Model Number : LYKXGF10

Certification : CE, ISO, GMP

Place of Origin : China

MOQ : 1 unit

Price : 200,000-400,000USD per piece

Payment Terms : D/A,D/P,T/T,Western Union

Supply Ability : 3 pcs per 6 months

Delivery Time : 180 work days normally

Packaging Details : carton, wood carton, pallets

Machine Name : Vial Filling and Capping Machine

Function : Vials Filling, Plugging, Capping

Filling Volume : 5-20ml

Filling Liquid Type : Chemical Acid Liquid Solution

Max Output Capacity : 8000 BPH

Vials Material : Glass

Filling Accuracy : +/-0.5%

Material Compatibility : SS316

Breakage Rate : <0.5%

CIP/SIP : Optional

Data Integrity & Traceability : 21 CFR Part 11

Capping Head : Single/Multi

LAF : Optional

Contact Now

Vial Filling and Capping Machine for Chemical Acid Liquid Solution 5-20ml Filling and Capping with Isolator, GMP Compliant

Revolutionize Your Chemical Packaging with the Next-Gen Vial Filling & Capping Solution

In the dynamic world of chemical formulations, precision and durability are non-negotiable. Our Fast-Curing Adhesive Vial Filling & Capping Machine redefines efficiency for 5-20ml borosilicate glass vials, specifically engineered for high-demand industrial applications like fast-curing epoxy resins, UV adhesives, and solvent-based sealants.

Why This Machine Stands Out?

✅ Anti-Corrosion Excellence
Built with 316L stainless steel critical components, this vial filling line resists aggressive solvents and volatile compounds, ensuring longevity even with corrosive adhesives.

✅ Zero-VOC Leakage Technology
A proprietary dual-layer sealing system minimizes volatile organic compound (VOC) emissions during filling—critical for meeting EU REACH and OSHA workplace safety standards.

✅ Smart Batch Switching
Seamlessly adapts from 5ml micro-dosing (e.g., electronics assembly adhesives) to 20ml bulk packaging (industrial sealants) in under 8 minutes, thanks to AI-driven parameter memory presets.

✅ Nanometer-Level Accuracy
Achieve ±0.5% dosing consistency for high-value adhesives—no more wasted raw materials or inconsistent bond strength.

Below is the main spec of our vial filling and capping machines:

Model	LYQCL80+LYASMR620/48+LYKGF8	LYQCL1000+LYASMR620/48+LYKGF10	LYQCL120+LYASMR620/55+LYKGF12
Adaptive Spec	2-30ml national standard vials	2-30ml national standard vials	2-30ml national standard vials
Capacity	6000-12000pcs/hr	6000-18000pcs/hr	6000-26000pcs/hr
Clarity	>99%
Breakage rate	<0.5%
Filling Torlerance	1.5 %
Fresh Water consumption	0.2-0.4Mpa/0.6-1.0 m3/hr
Clean compressed air consumption and pressure	0.3-0.6Mpa/35-80 m3/hr
Pass rate of stopping	> 99%
Pass rate of capping	> 99%
vacuum pumping speed	60m3/h(external distribution)
Exhuast volume	3500-4800m3/h
Weight	9300 KGs
Total Power	about 90kw 380v 50Hz	about 93kw 380v 50Hz	about 110kw 380v 50Hz
Size	about 12600 X 2260 X 2445mm	about 12600 X 2260 X 2445mm	about 13200 X 2260 X 2445mm

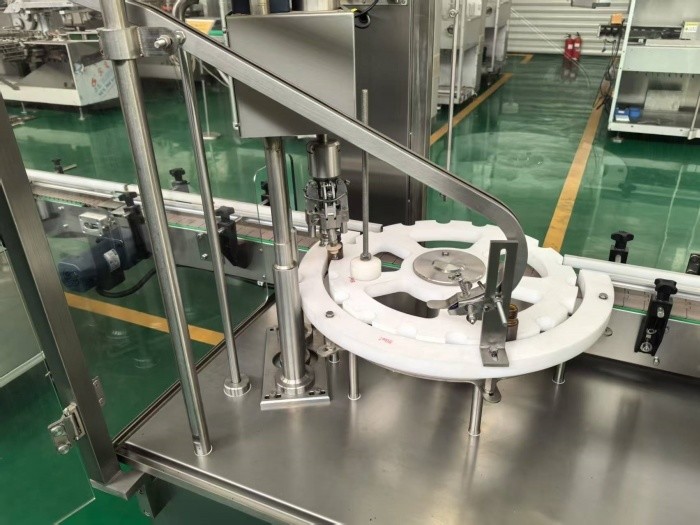

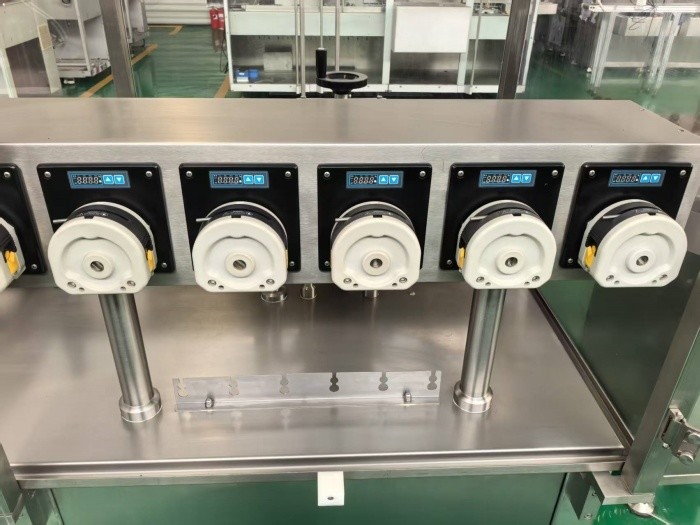

Pictures:

Vial Filling and Capping Machine for Chemical Acid Liquid Solution 5-20ml Filling and Capping with Isolator, GMP Compliant

Industry Applications

Electronics: Encapsulate microchips with UV-curing resins in 10ml vials
Automotive: Package heat-resistant gasket sealants in 15ml precision doses
Medical Devices: Fill sterile epoxy for surgical tool assembly in 5ml sterile vials

Technical Edge

Speed: 120-200 vials/minute (adjustable for viscous formulations)
Compliance: ISO 9001-certified, compatible with ATEX Zone 2 environments
Sustainability: 30% lower energy consumption vs. traditional models

Trusted by leading adhesive manufacturers in Germany and South Korea, this vial filling line isn’t just equipment—it’s your gateway to dominating the $52B specialty chemicals market. Request a live demo to see how our anti-corrosion engineering outlasts competitors’ machines by 2X!

Vial Filling and Capping Machine for Chemical Acid Liquid Solution 5-20ml Filling and Capping with Isolator, GMP Compliant Images
